Features

Specifications

Model NO.: IRobot TP10

Control Mode: Continuous Path Control

Drive Mode: Electric

Type: TIG Welding Robot

Welding Speed: 0.3-5.9rpm

OEM: Yes

ODM: Yes

Welding Type: TIG Welding

Warranty: 1 Year

Transport Package: Wooden Case

Specification: According To Actual Packing

Trademark: HUAHENG

Origin: China

Highlight:

electric automatic welding robot

electric automatic pneumatic welding robot

Basic Infomation

Place of Origin: CHINA

Brand Name: HUAHENG

Payment & Shipping Terms

Packaging Details: Wooden box

Delivery Time: 30 workdays

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Gallery

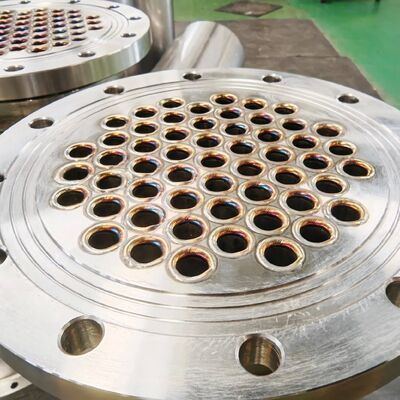

Welding Robot Machine for Boiler Tube Automatic Welding Robot

Product Description

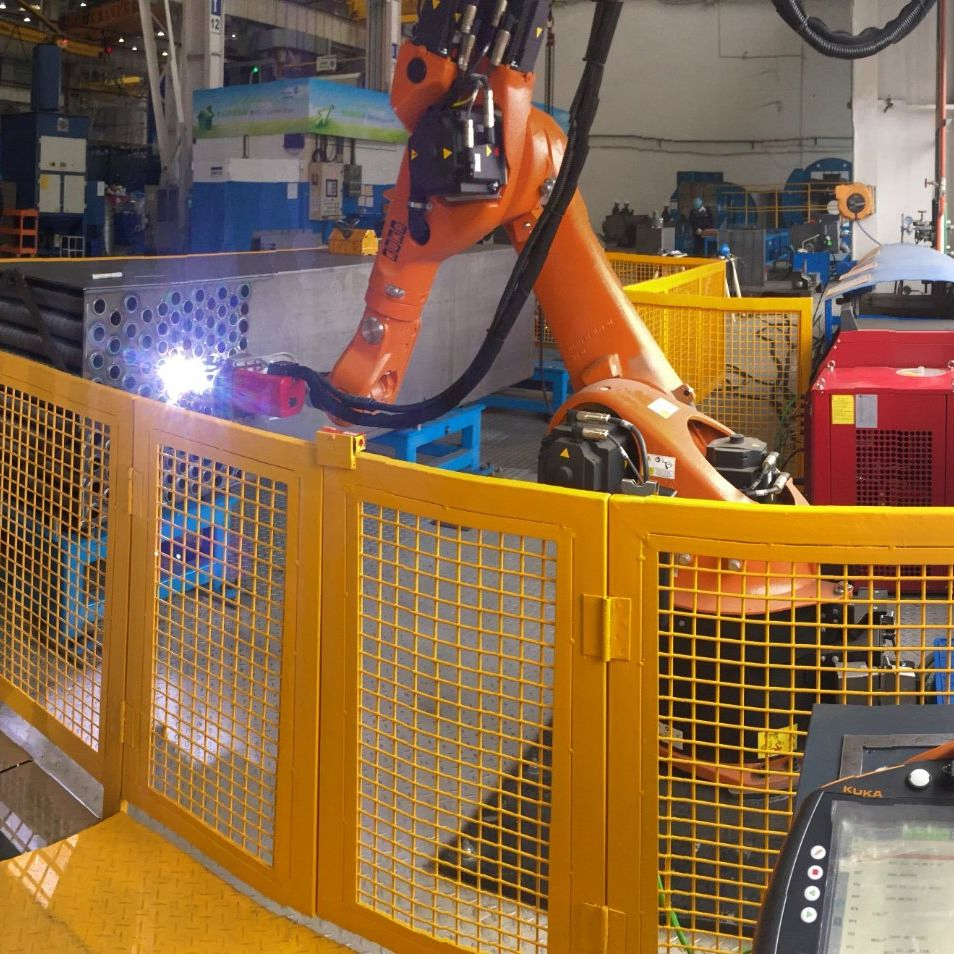

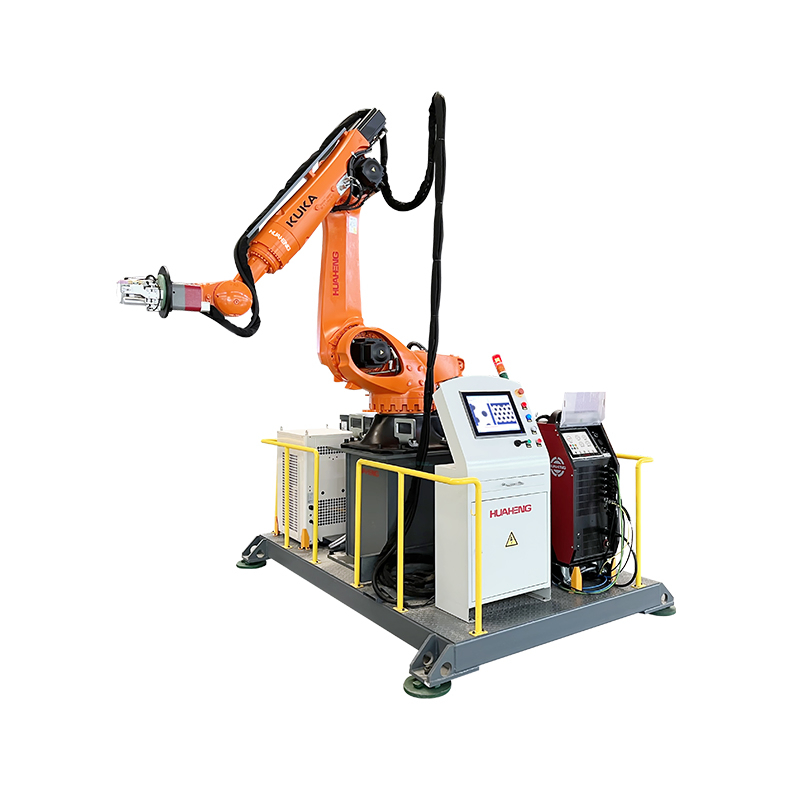

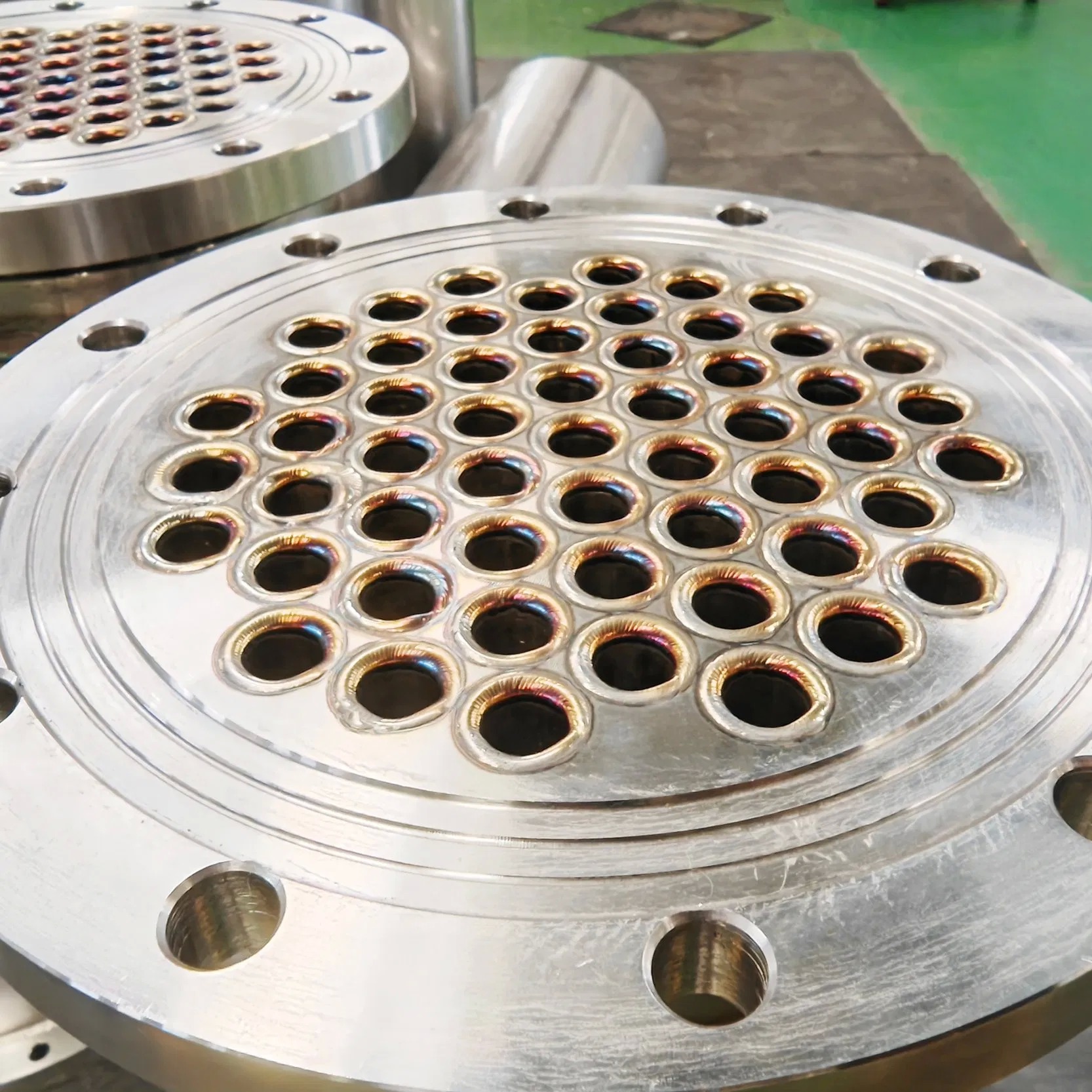

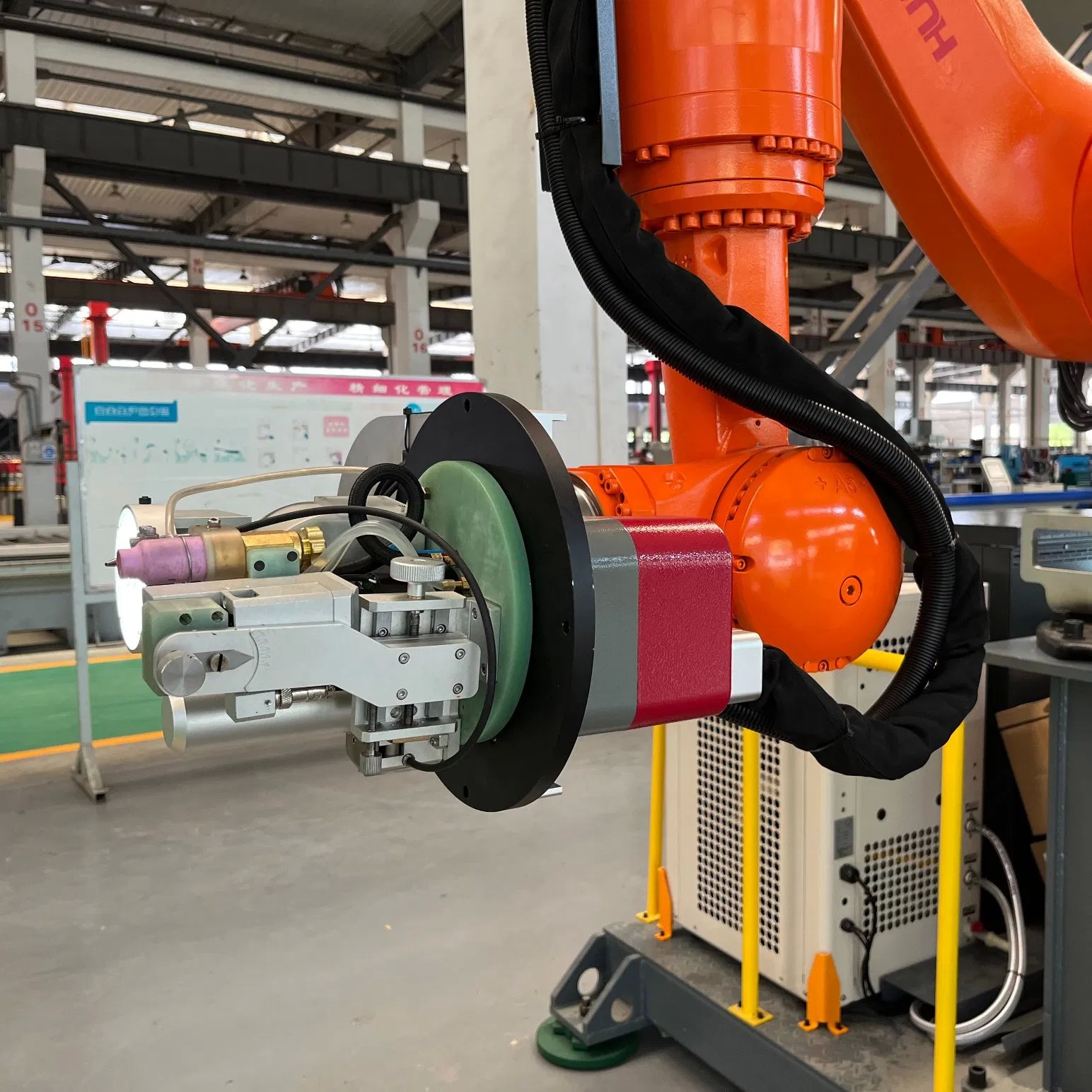

HUAHENG robot tube & sheet welding system is independently developed by HUAHENG. The whole system realizes unmanned operation of tube & sheet, efficient TIG welding, and one-people multi-machine control. Improve production efficiency and reducing labor intensity. It is suitable for automatic welding of general tubesheet in boiler industry, power construction, chemical industry and other industries.

Weldable Material:	carbon steel, stainless steel, titanium
Tube & Sheet Type:	Tube & Sheet Type: pipe flush, pipe protruding
Pipe OD Range(mm):	∅8~∅80
Rotation Speed(rpm):	0.3~5.9
Torch Inclination:	0°~30°
Arc Length Adjustment(mm):	20
Maximum Speed(mm/min):	1800
Wire Feeding Accuracy Error:	≤ 5%
Arc Length Accuracy Error:	≤ 0.1(v)
Protective Gas:	argon
Cooling Type:	water cooling
Cooling Flow(ml/min):	600
Rated Current:	300A temporary load rate 60%

1. Laser automatic positioning;
2. The robot vision measures the specific position of each pipe diameter, and carries out background welding;
3. The robot accurately finds the position for welding, and automatically turns on the tracking and automatic welding;
4. Intelligent fault prediction: replace tungsten electrode, welding wire;
5. One people can manage 3 ~ 4 robot welding sets.

Tube & sheet welding robot will be packed by wooden case for air and sea shipping.
