Features

Specifications

Model NO.: HFTA42-700*800*850

Type: Forklift AGV

Control Mode: Point To Point Control

Application: Loading, Forging

Condition: New

Warranty: 1 Year

No-Load Maximum Speed: 0-50m/Min

Maximum Speed At Full Load: 0-30m/Min

No-Load Acceleration: 1m/S2

Full Load Acceleration: 2m/S2

Transport Package: Wooden Case

Specification: 700*750*860

Trademark: HUAHENG

Origin: China

HS Code: 8428909090

Production Capacity: 3000

Highlight:

Lightweight Bin Telescopic Fork

Forkpallet Fork 850MM

Forkpallet Fork 30m/min

Basic Infomation

Place of Origin: CHINA

Brand Name: HUAHENG

Certification: ISO, CE

Model Number: HFTA42

Payment & Shipping Terms

Packaging Details: Wooden box

Delivery Time: 30 workdays

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Gallery

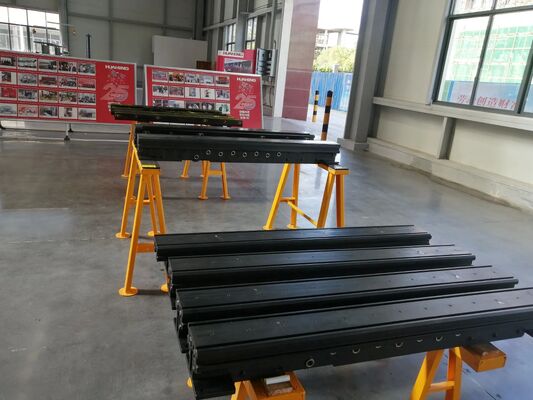

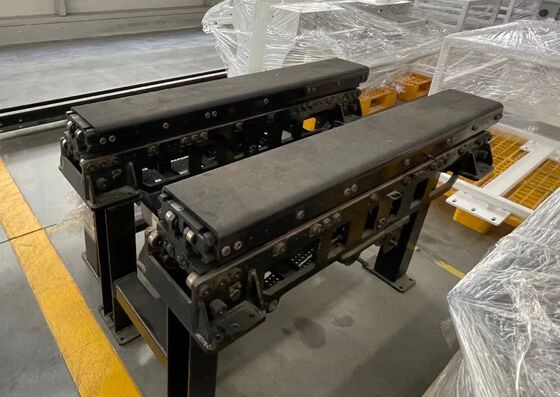

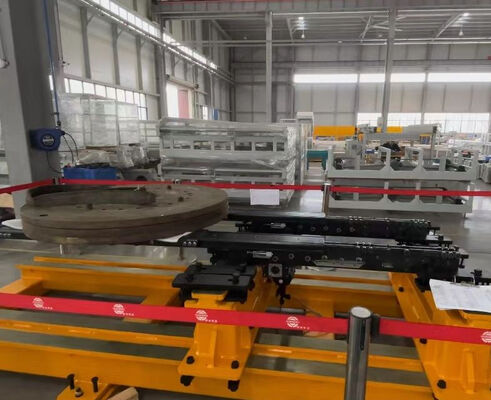

Lightweight Bin Telescopic Fork 700 X 800 X 850MM Loading Forkpallet Fork 30m/Min

Product Description

Lightweight Single Motor Single Deep Hfta42-700*800*850 Loading Forkpallet Fork

The HFTA42 single-motor, single-deep forks are used for automated warehouse storage of light goods such as crates. The fork body is delicate and small, usually used as a single fork, but also can be used as a double fork or multi-fork joint use.

Main components and functions:

Combination top fork: It is made of one top plate and two side plates spliced together, and can be customized with different widths;
High-strength needle roller bearings: customized according to the requirements of telescopic fork industry, with high precision, low resistance, strong radial bearing capacity, high hardness and self-aligning function, wear-resistant and impact-resistant;
Analyzed chain: anti-stretch, high strength, high breaking load, fatigue resistance;
One-piece center fork: made of high-quality steel, machining center one-piece molding, with high precision;
Mechanical Limit Protection: The telescopic fork is equipped with a mechanical limit inside to prevent it from being dislodged over the stroke;

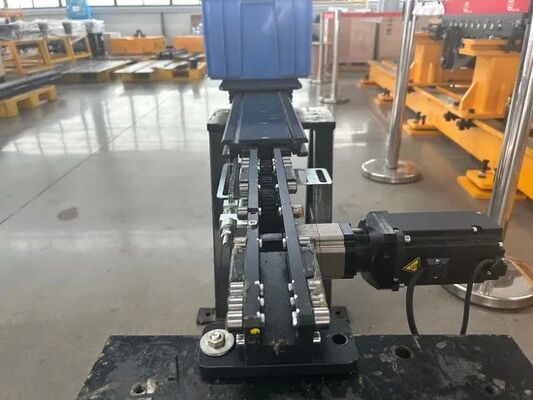

Drive: AC servo motor with planetary reducer;
No-load maximum speed: 0-50m/min
Maximum speed at full load: 0-30m/min
No-load acceleration: 1m/S²
Full load acceleration: 2m/S²

FH Fork thickness (mm)	LS Cargo length (mm)	L Length of fork(mm)	S1 Maximum stroke (safety stroke 30mm)	TH Total fork height (mm)	HF Mounting height(mm)	FW Fork width (mm)	Q Load (KG)	Load Disturbance(mm) ± 10%	No-load disturbance(mm) ± 10%
42	600	700	750+30	228	73	183-600	120	7	≤4
	600	750	860+30				120	9
	650	700	810+30				120	8
		750	860+30				120	10
		800	850+30				120	8
		800	910+30				120	10
	700	700	750+30				120	11
		750	860+30				120	9
		800	850+30				120	9
		800	910+30				120	11
	750	750	850+30				120	9	≤5
		750	860+30				120	10
		800	850+30				120	10
		800	910+30				120	12
		900	950+30				120	10
		900	1010+30				120	13
	800	800	910+30				120	12
		900	950+30				120	12
		900	1010+30				120	14

Changsha Huaheng Robotics System Co., Ltd. is a global engineering company under Huaheng Group, which is committed to the development, design, manufacture and service of intelligent logistics and warehousing and intelligent manufacturing flexible automated production line, and a high and new technology enterprise that provides customers with integrated solutions of intelligent logistics and intelligent manufacturing.

The company has excellent design development and engineering technology team engaged in factory automation logistics industry for many years, after continuous independent research and development and innovation, the company has owned a number of patented technology certificates, the certificate covers intelligent manufacturing production line, intelligent three-dimensional warehouse, software control and so on. In the construction machinery industry for heavy industry enterprises to provide the world's leading outrigger, frame, boom, large-tonnage frame, large-tonnage boom five intelligent robot welding production line; for the world's advanced heavy industry enterprises to provide intelligent logistics large three-dimensional warehouse, marking the heavy industry oversized parts of the intelligent storage has been solved; in the pharmaceutical industry for the pharmaceutical factories to establish a multi-layer intelligent logistics sorting, picking project; in the real estate and construction industry The industry was the first to develop and implement the construction of four climbing frame intelligent robot welding production line to become the industry benchmark.

Lightweight Bin Telescopic Fork 700 X 800 X 850MM Loading Forkpallet Fork 30m/Min 6

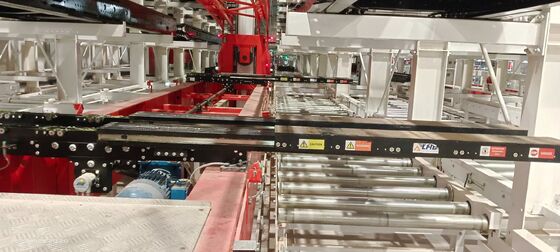

Telescopic forks are the actuators of the stacker cranes for accessing goods. The telescopic forks can be extended and retracted horizontally in order to feed (or remove) goods to and from the two side compartments. Forks generally use three-stage (or four-stage) linear differential telescopic forks, which are composed of cam bearings, slider guide units, power gear units, fork bodies, etc., and are driven by rack and pinion or chain.
