Technical specialties

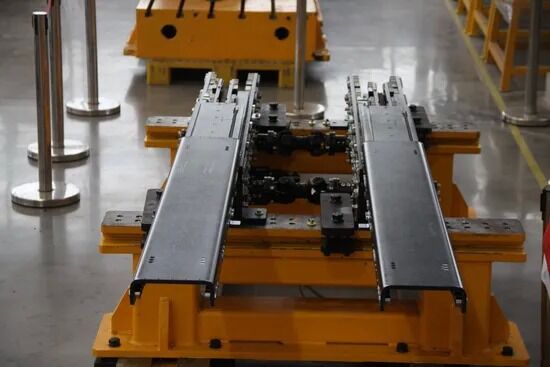

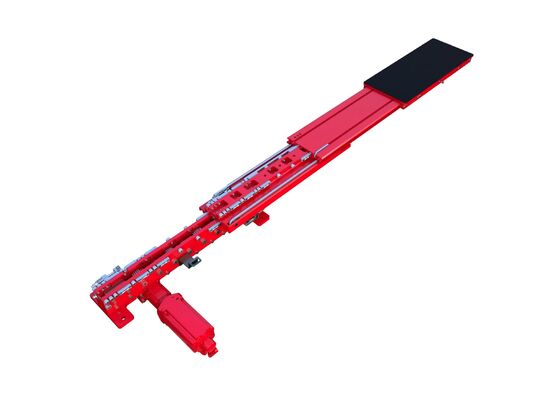

HFTA38x75 single motor double reach forks are used for automated warehouse storage of light goods such as crates. The fork body is delicate and small, usually used as a single fork, but also can be used as a double fork or multi-fork joint use.

1. Combination top fork: It is made of one top plate and two side plates spliced together, and can be customized with different widths;
2. High-strength needle roller bearings: customized according to the requirements of telescopic fork industry, with high precision, low resistance, strong radial bearing capacity, high hardness and self-aligning function, wear-resistant and impact-resistant;
3. Analyzed chain: anti-stretch, high strength, high breaking load, fatigue resistance;
4. One-piece center fork: made of high-quality steel, machining center one-piece molding, with high precision;
5. Mechanical limit protection: The telescopic fork is equipped with a mechanical limit inside to prevent over-travel and disengagement;
6. Drive: AC servo motor with planetary reducer;
7. No-load maximum speed: 0-45m/min
8. Maximum speed under full load: 0-30m/min
9. No-load acceleration: 1m/S²
10. Full load acceleration: 0.5m/S



Our Advantages



About us

Changsha Huaheng Robotics System Co., Ltd. is a global engineering company under Huaheng Group, which is committed to the development, design, manufacture and service of intelligent logistics and warehousing and intelligent manufacturing flexible automated production line, and a  high and new technology enterprise that provides customers with integrated solutions of intelligent logistics and intelligent manufacturing.

The company has excellent design development and engineering technology team engaged in factory automation logistics industry for many years, after continuous independent research and development and innovation, the company has owned a number of patented technology certificates, the certificate covers intelligent manufacturing production line, intelligent three-dimensional warehouse, software control and so on. In the construction machinery industry for heavy industry enterprises to provide the world's leading outrigger, frame, boom, large-tonnage frame, large-tonnage boom five intelligent robot welding production line; for the world's advanced heavy industry enterprises to provide intelligent logistics large three-dimensional warehouse, marking the heavy industry oversized parts of the intelligent storage has been solved; in the pharmaceutical industry for the pharmaceutical factories to establish a multi-layer intelligent logistics sorting, picking project; in the real estate and construction industry The industry was the first to develop and implement the construction of four climbing frame intelligent robot welding production line to become the industry benchmark.

Telescopic forks are the actuators of the stacker cranes for accessing goods. The telescopic forks can be extended and retracted horizontally in order to feed (or remove) goods to and from the two side compartments. Forks generally use three-stage (or four-stage) linear differential telescopic forks, which are composed of cam bearings, slider guide units, power gear units, fork bodies, etc., and are driven by rack and pinion or chain.
