1600 X 1600 X 1750MM Telescopic Fork Single Motor Single Deep Position Backhoe Loader

1
MOQ
8500
Price
1600 X 1600 X 1750MM Telescopic Fork Single Motor Single Deep Position Backhoe Loader
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: Hftb180x80-h-sm-2z-1600*1600*1750
Application: Loading, Forging
Condition: New
Warranty: 1 Year
No-Load Maximum Speed: 0-40m/Min
Maximum Speed At Full Load: 0-30m/Min
No-Load Acceleration: 0.5m/S^2
Full Load Acceleration: 1m/S^2
Color: Red/Black White
Total Fork Height: 530mm
Mounting Height: 152mm
Fork Width: >=580mm
Transport Package: Wooden Case
Trademark: HUAHENG
Origin: China
HS Code: 8428909090
Production Capacity: 3000
Highlight:

1600MM Telescopic Forks

,

1750MM Telescopic Forks

,

530mm Backhoe Loader
Basic Infomation
Place of Origin: CHINA
Brand Name: HUAHENG
Certification: ISO, CE
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 30 workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Description

Hftb180X80-H-Sm-2z-1600*1600*1750-Pallet Telescopic Fork Single Motor Single Deep Position Backhoe Loader





Product Description

The HFTB180x80 series single reach forks have a higher load capacity. These forks are used for the storage of 1500kg-2000kg standard pallets in automated three-dimensional warehouses.

Main components and functions:
  1. One-piece upper fork: made of high-strength plate with integral bending processing, simple and beautiful, high strength;
  2. High-strength needle roller bearings: customized according to the requirements of telescopic fork industry, with high precision, low resistance, strong radial bearing capacity, high hardness and self-aligning function, wear-resistant and impact-resistant;
  3. Polymer material guide block: ultra-high polymer polyethylene, high wear-resistant, impact-resistant, with self-lubrication;
  4. Analyzed chain: anti-stretch, high strength, high breaking load, fatigue resistance;
  5. One-piece center fork: made of high-quality steel, machining center one-piece molding, with high precision;
  6. Torque limiter protection: the driving part is equipped with a torque limiter, disc spring friction plate structure, overload slipping in time to disconnect the transmission;
  7. Mechanical Limit Protection: The telescopic fork is equipped with a mechanical limit inside to prevent it from being dislodged over the stroke;
  8. Drive: Variable frequency motor, AC servo motor with planetary reducer can be used to provide drive;
  9. No-load maximum speed: 0-40m/min
  10. Maximum speed at full load: 0-30m/min
  11. No-load acceleration: 0.5m/S2
  12. Full load acceleration: 1m/S2


1600 X 1600 X 1750MM Telescopic Fork Single Motor Single Deep Position Backhoe Loader 0
1600 X 1600 X 1750MM Telescopic Fork Single Motor Single Deep Position Backhoe Loader 1

FH
Thickness of fork body(mm)		 LS Cargo length (mm) L Length of fork(mm) S1 Maximum stroke (safety stroke 30mm) TH Total fork height (mm) HF
Mounting height(mm)
TWF Fork Width
(mm)		 FW
Fork width (mm)
Q Load (KG)		 Load Disturbance(mm)
±
10%		 No-load disturbance(mm)
±
10%






80		 1100 1200 1350+30





530





152





≥
580mm





180		 2000 16


≤4
1200 1200 1300+30 2000 14
1200 1350+30 2000 17
1300 1300 1400+30 1750 17
1300 1450+30 1750 21
1400 1400 1550+30 1500 17
1500 1500 1650+30 1350 20
1600 1600 1750+30 1200 20
1700 1700 1850+30 1000 20

≤6
1800 1800 1950+30 850 20
1900 1900 2050+30 700 20
2000 2000 2150+30 600 20
2100 2100 2250+30 500 20

1600 X 1600 X 1750MM Telescopic Fork Single Motor Single Deep Position Backhoe Loader 2
1600 X 1600 X 1750MM Telescopic Fork Single Motor Single Deep Position Backhoe Loader 3

1600 X 1600 X 1750MM Telescopic Fork Single Motor Single Deep Position Backhoe Loader 4
1600 X 1600 X 1750MM Telescopic Fork Single Motor Single Deep Position Backhoe Loader 5



About us

Changsha Huaheng Robotics System Co., Ltd. is a global engineering company under Huaheng Group, which is committed to the development, design, manufacture and service of intelligent logistics and warehousing and intelligent manufacturing flexible automated production line, and a  high and new technology enterprise that provides customers with integrated solutions of intelligent logistics and intelligent manufacturing.

1600 X 1600 X 1750MM Telescopic Fork Single Motor Single Deep Position Backhoe Loader 6
The company has excellent design development and engineering technology team engaged in factory automation logistics industry for many years, after continuous independent research and development and innovation, the company has owned a number of patented technology certificates, the certificate covers intelligent manufacturing production line, intelligent three-dimensional warehouse, software control and so on. In the construction machinery industry for heavy industry enterprises to provide the world's leading outrigger, frame, boom, large-tonnage frame, large-tonnage boom five intelligent robot welding production line; for the world's advanced heavy industry enterprises to provide intelligent logistics large three-dimensional warehouse, marking the heavy industry oversized parts of the intelligent storage has been solved; in the pharmaceutical industry for the pharmaceutical factories to establish a multi-layer intelligent logistics sorting, picking project; in the real estate and construction industry The industry was the first to develop and implement the construction of four climbing frame intelligent robot welding production line to become the industry benchmark.
1600 X 1600 X 1750MM Telescopic Fork Single Motor Single Deep Position Backhoe Loader 7

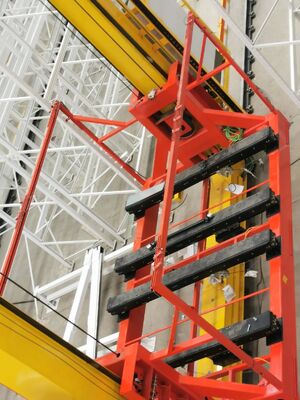

Telescopic forks are the actuators of the stacker cranes for accessing goods. The telescopic forks can be extended and retracted horizontally in order to feed (or remove) goods to and from the two side compartments. Forks generally use three-stage (or four-stage) linear differential telescopic forks, which are composed of cam bearings, slider guide units, power gear units, fork bodies, etc., and are driven by rack and pinion or chain.1600 X 1600 X 1750MM Telescopic Fork Single Motor Single Deep Position Backhoe Loader 81600 X 1600 X 1750MM Telescopic Fork Single Motor Single Deep Position Backhoe Loader 91600 X 1600 X 1750MM Telescopic Fork Single Motor Single Deep Position Backhoe Loader 101600 X 1600 X 1750MM Telescopic Fork Single Motor Single Deep Position Backhoe Loader 11
